OPzV battery 2v

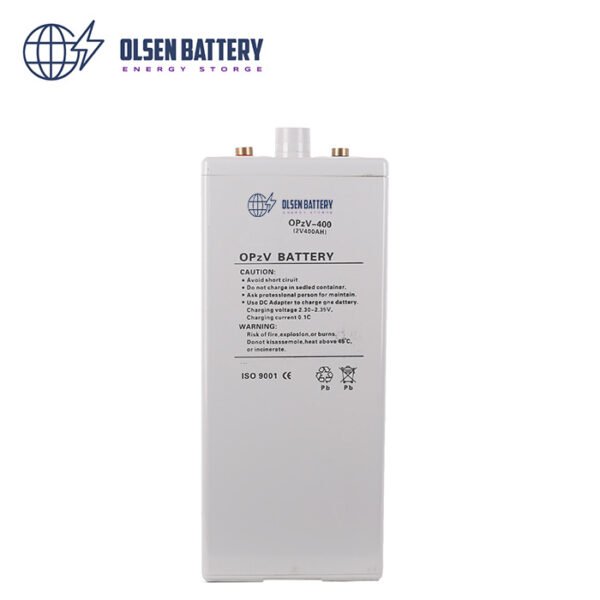

OPZV400

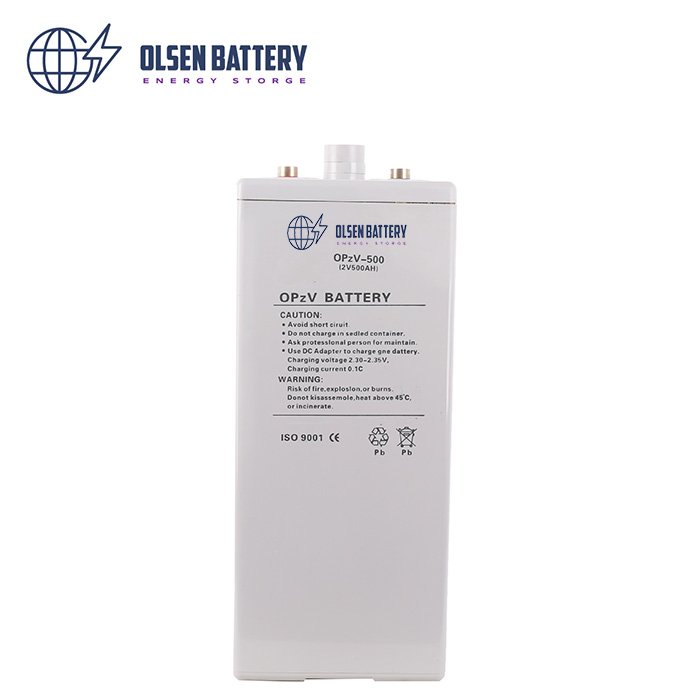

OPZV500
OPZV400

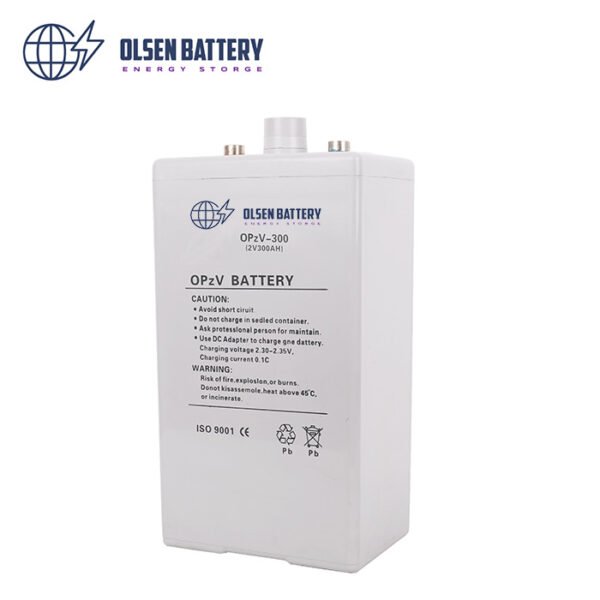

OPZV300
Category Tags , , , ,

OPzV is a traditional tubular gel battery widely used in all kinds fields. OPzV series provide excellent deep cycle, recovery performance and high-level reliability think to the conservative tubular positive plate and gel electrolyte. OPzv series is mainly designed as a standby and cycle application as an energy storage system, telecommunication, emergency power.

Additional information

Rate Voltage

2V
Capacity

200Ah~3000Ah
Application

UPS,EPS,Solar system,Telecom base station
Advantages

Excellent deep cycle performance;floating backup performance; wide temperature range; 20 years design service life, Floating backup performance ; Wide temperature range;High quality alloy grid
Materil

Tubular positive plate gel battery
ASK FOR A QUOTE

Product Details:

Olsen Gel OPzV Tubular batteries provide long and reliable performance in reserve power applications. The batteries have a long proven track record in mission-critical installations, especially in remote and high-temperature environments. Tubular lead-acid batteries are exceptionally tolerant of partial state of charge operation and deep discharge.

Gel OPzV batteries provide superior float and cycle performance, with up to 20-year design life in renewable and stationary applications. The batteries feature impact-resistant ABS cases and sliding terminal poles to prevent long-term damage. Gel OPzV batteries are valve regulated, maintenance-free, and provide the lowest total cost of ownership.

OPZV300 OPZV250



Features:

  • Its high capacity
  • Long half-life
  • Reduced maintenance
  • Low self-discharge
  • Acid level control simple and fast
  • Low water consumption
  • Dimensions and weights adjusted
  • The lowest and constant float current

Benefits:

  • Long life
  • High discharge performance
  • High gas recombination efficiency
  • Maximum charge efficiency
  • GEL state electrolyte prevents leakage and layering
  • Low resistance PVC or PF micro-porous separator ensures

Applications:

  • Power generation plants
  • Electrical utility applications
  • Telecommunications
  • Microwave radio systems
  • Emergency lighting
  • Outdoor enclosures
  • Photovoltaic applications

Specification of OPzV 2v batteries:

Model Normal Voltage
(V)		 Rated Capacity
(20HR)		 Weight
(KG)		 Approx Dimension
Length（±3mm) Width（±3mm) Height （±3mm) Total Height（±3mm)
(mm) (in.) (mm) (in.) (mm) (in.) (mm) (in.)
4OPzS200 2 200 20 103 4.06 206 8.11 356 14.02 389 15.31
5OPzS250 2 250 23.5 124 4.88 206 8.11 356 14.02 389 15.31
6OPzS300 2 300 28 145 5.71 206 8.11 356 14.02 389 15.31
5OPzS350 2 350 29.5 124 4.88 206 8.11 473 18.62 505 19.88
6OPzS420 2 420 35 145 5.71 206 8.11 473 18.62 505 19.88
7OPzS490 2 490 41 166 6.54 206 8.11 473 18.62 505 19.88
6OPzS600 2 600 49 145 5.71 206 8.11 646 25.43 678 26.69
8OPzS800 2 800 65 191 7.52 210 8.11 646 25.43 678 26.69
10OPzS1000 2 1000 79 233 9.17 210 8.11 646 25.43 678 26.69
12OPzS1200 2 1200 93 275 10.83 210 8.11 646 25.43 678 26.69
12OPzS1500 2 1500 117 275 10.83 210 8.11 795 31.3 827 32.56
16OPzS2000 2 2000 155 399 15.71 210 8.11 770 30.31 802 31.57
20OPzS2500 2 2500 192 487 19.17 212 8.35 770 30.31 802 31.57
24OPzS3000 2 3000 228 576 22.68 212 8.35 770 30.31 802 31.57
